BIM 3D: From design intent to site certainty in 2026

Table of Contents

Introduction

BIM 3D (Building Information Modelling in three dimensions) represents a fundamental shift from traditional 2D drafting to object-based, information-rich digital construction. Instead of disconnected lines and symbols, BIM 3D uses intelligent parametric objects: walls, beams, ducts, fixtures each carrying geometric, material, performance, and cost data. This structured approach serves developers, architects, structural engineers, quantity surveyors, and contractors by enabling automated clash detection, quantity take-offs, variant analysis, and coordinated documentation. The promise: fewer RFIs and variation orders, faster regulatory approvals, better stakeholder alignment, and improved project certainty from design intent through to site completion and facilities management.

But here’s the gap traditional BIM tools don’t solve: Technical coordination alone doesn’t secure tenders, convince clients, or accelerate approvals. That’s where DX Living goes beyond BIM 3D transforming information-rich models into immersive, decision-ready experiences that win projects faster.

What is BIM 3D?

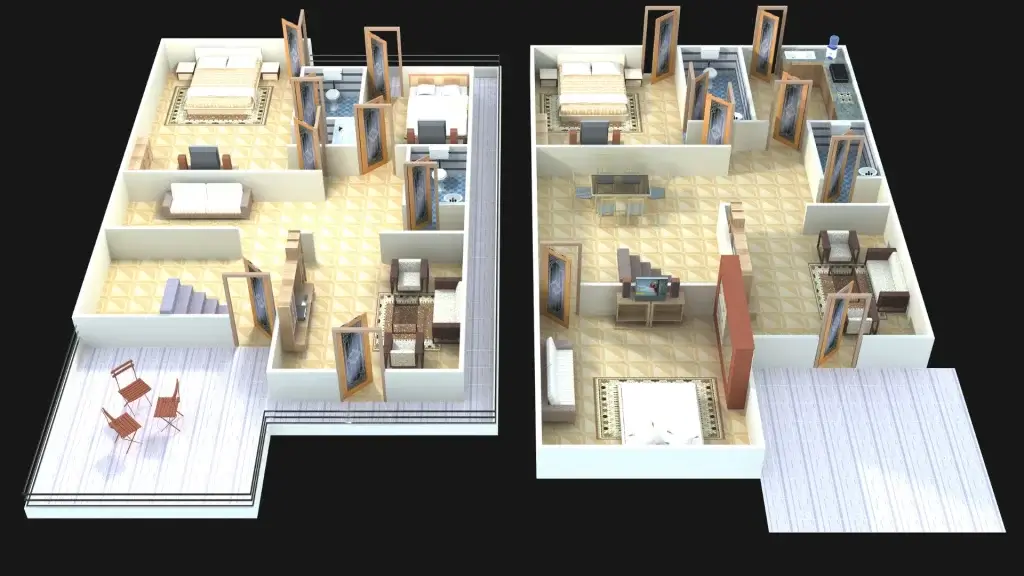

Object vs. Mesh: Parametric elements, metadata, schedules

BIM 3D objects are parametric: change a wall thickness and connected doors, windows, finishes, junctions, and quantity schedules update automatically. Each object carries metadata material specifications, fire ratings, acoustic performance, cost codes, manufacturer details, maintenance schedules. This contrasts with mesh-based 3D models (polygons without intelligence) used in visualisation software, visually accurate but informationally inert.

2D CAD vs. 3D CAD vs. BIM 3D

Aspect	2D CAD	3D CAD	BIM 3D
Representation	Lines, arcs, text annotations	Solid/surface geometry	Intelligent objects + relationships
Information	Manual annotation only	Geometry + limited properties	Geometry + rich metadata + schedules
Change propagation	Manual coordination across sheets	Manual coordination across views	Automatic update across all views/schedules
Collaboration	Layer/xref conventions	File exchange, no validation	Federated models, clash detection, change tracking

Where 4D/5D fit and why 3D is the foundation

BIM 3D: Geometric + informational foundation
BIM 4D: Links 3D model to construction schedule (time dimension) visualises build sequence, identifies staging conflicts
BIM 5D: Adds cost dimension links objects to cost databases, enables real-time budget tracking, variant cost analysis

Without robust BIM 3D (accurate geometry, rich data), 4D/5D workflows collapse schedules link to incorrect quantities, cost data mismatches reality.

DX Living’s Latest Technology Edge

1. Real-Time Material Libraries
Browse verified supplier products (windows, doors, cladding, fixtures) with accurate textures, finishes, costs. Swap instantly see how Supplier A’s timber cladding compares to Supplier B’s brick in your actual project context.

2. Immersive VR Sign-Offs
Stakeholders navigate at real scale (desktop or headset) validate spatial quality, privacy, sightlines, material combinations. Annotate directly in VR no more “I thought it would look different.”

3. Live Scheme Comparison
Compare Variant A (steel frame + curtain wall) vs Variant B (concrete + precast) side-by-side in the same VR session. See cost, programme, carbon impacts simultaneously accelerate consensus.

4. Tender-Ready Visual Packages
Export photorealistic renders, narrated walkthroughs, interactive models differentiate your tender submission with presentations that clients remember.

5. Supplier-Backed Procurement
Every selection links to real SKUs, lead times, pricing. Eliminate “subject to availability” risks your tender reflects build-ready certainty.

DX Living doesn’t replace BIM 3D it completes it. Use Revit/ArchiCAD for technical coordination; use DX Living to win tenders, secure approvals, and lock client decisions fast.

Core components of a robust BIM 3D setup

Authoring tools & schemas: IFC, COBie; discipline models

Authoring platforms: Autodesk Revit, Graphisoft ArchiCAD, Bentley OpenBuildings, Vectorworks
Open standards: IFC (Industry Foundation Classes) enables interoperability across platforms; COBie (Construction Operations Building Information Exchange) structures FM/asset data
Discipline models: Architecture (ARC), Structure (STR), MEP (Mechanical/Electrical/Plumbing) developed independently, federated for coordination

Level of development (LOD): 200/300/350/400 targets by phase

LOD	Description	Typical phase	Detail level
200	Generalised geometry, approximate quantities	Concept/Schematic Design	Generic objects, indicative sizes
300	Specific assemblies, accurate quantities	Design Development	Defined systems, coordinated dimensions
350	Coordination-ready, interference-checked	Construction Documentation	Clash-free, detailed junctions
400	Fabrication/installation-ready, manufacturer-specific	Procurement/Construction	Shop drawings, specific products

DX Living Integration: Import LOD 300+ models directly material intelligence and geometry translate into immersive experiences with verified supplier products applied automatically.

CDE (Common Data Environment): Naming, revisions, approvals, audit trail

ISO 19650-compliant CDEs manage:

File naming conventions: Project-Originator-Zone-Level-Type-Role-Number-Revision (e.g., PRJ-ARC-01-02-M-A-1001-P02)
Workflow states: WIP (Work in Progress) → Shared → Published → Archived
Approval gates: Design freeze, tender issue, construction issue, as-built
Audit trail: Version history, change logs, approval timestamps, responsibility matrix

>>> Learn more about BIM Integration in custom home design

Coordination & clash avoidance that actually works

Federation workflow: ARC–STR–MEP merge, rulesets, tolerance strategy

Federated coordination combines discipline models in clash-detection platforms (Autodesk Navisworks, Solibri, BIMcollab):

Load models: Import ARC, STR, MEP via IFC or native formats
Apply clash rulesets: Hard clashes (geometry intersections), soft clashes (clearance violations), workflow clashes (sequencing conflicts)
Set tolerances: 0mm for structural clashes, 50–100mm for MEP clearances (maintenance access)
Run detection: Automated clash tests generate issue reports

Typical pain points caught in BIM 3D

Beam/duct conflicts: Structural beams intersecting HVAC ductwork resolve via beam depth optimisation or duct routing adjustment
Riser sizing: Inadequate vertical shafts for services risers (plumbing, electrical, data) identify early, coordinate with architect
Access/maintenance zones: Insufficient clearance around plant equipment, dampers, valves embed manufacturer-specified service zones

DX Living Advantage: Once clashes are resolved in traditional BIM, import clash-free models into DX Living show clients the coordinated solution in photorealistic VR. Tender submissions include “zero-clash certification” with visual proof.

Issue management: BCF/IDs, statuses, ownership, close-out loop

BCF (BIM Collaboration Format) standardises issue exchange:

Issue ID: Unique identifier linking to specific model element/location
Status tracking: Open → In Progress → Resolved → Verified → Closed
Ownership assignment: Discipline responsible for resolution (ARC, STR, MEP)
Close-out validation: Design coordinator verifies fix, updates model, archives decision rationale

Design to procurement: How BIM 3D feeds decisions

Quantities & schedules from the model

BIM 3D auto-generates:

Room schedules: Areas, finishes (floor/wall/ceiling), fixtures, lighting
Door/window schedules: Quantities, types, fire ratings, hardware sets, supplier SKUs
MEP schedules: Equipment loads, pipe/duct sizes, cable containment, control zones
Material take-offs: Concrete volumes, steel tonnage, cladding areas, insulation quantities

Accuracy depends on LOD at LOD 300, expect ±5–10% quantity variance; LOD 400 achieves ±2–5%.

DX Living enhancement: These schedules link to real supplier products in an immersive environment. Clients don’t just see “oak flooring 120m²” they walk across exact Supplier X engineered oak planks in VR, see grain pattern, sheen, and verify against furniture. Tender accuracy improves, selections are build-ready, not generic.

Variant management (A/B/C) and impact on cost, programme, embodied carbon

Test design alternatives within BIM 3D:

Variant A: Steel frame + curtain wall façade
Variant B: Concrete frame + precast cladding
Variant C: Timber frame + brick veneer

Extract comparative data:

Cost: Material/labour rates linked to objects (5D BIM)
Programme: Sequencing linked to schedule (4D BIM) Variant B: +3 weeks vs Variant A
Embodied carbon: Material EPDs (Environmental Product Declarations) embedded in objects Variant C: -40% vs Variant A

DX Living competitive edge for tenders:

Present all three variants in a single VR session to the tender evaluation panel. They experience each option spatially, see cost/carbon/time data overlaid, make informed choices in 30 minutes vs weeks of meetings. Your tender stands out, you’re offering decision certainty, not just technical compliance.

Supplier-ready outputs: Model views + annotated sheets + schedules

Export procurement packages:

3D views: Isolated systems (kitchen joinery, bathroom pods, façade modules) with dimensions, annotations
2D sheets: Plans, elevations, sections, details derived from coordinated model
Schedules: Quantities, specifications, performance criteria, SKUs

Suppliers receive complete, coordinated information reducing RFIs, pricing ambiguity, delivery delays.

DX Living adds: Interactive VR models for supplier workshops. Kitchen joiner “walks” the space, verifies clearances, identifies issues pre-fabrication. Façade contractor sees cladding in context of neighboring buildings, confirms color/texture match. Fewer site variations = tighter tender pricing = competitive advantage.

Site enablement: Taking BIM 3D beyond the office

“Site Mode” views: Simplified geometry, bold annotations, critical dimensions

Tailor model outputs for site consumption:

Simplified geometry: Remove minor details (furniture, light fittings); emphasise structural/services elements
Bold graphics: High-contrast colours, thick lines, large text (readable on tablets/mobiles)
Critical dimensions: Key clearances, setting-out points, level datums highlighted

Export to PDF, DWG, or cloud-based viewers (Autodesk BIM 360, Procore, Trimble Connect).

AR/VR tie-In: BIM 3D → VR walkthroughs for sign-off; AR overlays for install QA

Traditional BIM workflow:
Export BIM 3D models to VR platforms (Unity Reflect, Enscape) stakeholders navigate at 1:1 scale, validate spatial quality, material selections, sightlines before construction.

DX Living workflow (beyond traditional VR):

Supplier-verified materials: Every surface shows actual product not generic texture
Live decision-making: Client sees Kitchen Option A, swaps to Option B instantly, approves in session
Annotation in VR: Mark issues, request changes, capture decisions exported as action list
Tender presentation mode: Evaluation panels experience project as if built emotional engagement wins bids

AR overlays: Site teams use AR apps (Trimble SiteVision, Microsoft HoloLens) to overlay BIM 3D onto a physical site to verify placement of MEP services, structural elements, facades against design intent in real time.

As-built capture and asset tagging for FM/O&M

Post-construction, update BIM 3D with as-built data:

Laser scanning/photogrammetry: Capture installed conditions, compare to design model, document deviations
Asset tagging: Link physical equipment (chillers, pumps, switchboards) to BIM objects via QR codes/RFID
COBie handover: Deliver structured FM data (asset registers, O&M manuals, warranties, maintenance schedules)

Quality, risk, and compliance

Information standards (ISO 19650 Principles): WIP/Shared/Published

ISO 19650 defines information management workflows:

WIP (Work in Progress): Author’s workspace unrestricted changes, not for external use
Shared: Reviewed internally, shared with project team for coordination/comment not construction-ready
Published: Approved for specific purpose (tender, construction, regulatory submission) change-controlled

Clear state definitions prevent premature use of uncoordinated information.

Tolerances and access requirements embedded in objects

BIM objects should include:

Fabrication tolerances: ±5mm for precast concrete, ±10mm for steel frame
Installation clearances: 600mm access zones around MEP equipment, dampers, valves
Maintenance zones: Swing radii for panel doors, ladder access to rooftop plant

Embedding these as object properties or clash-detection rule parameters automate compliance checking.

Recordkeeping: Decisions, selections, and approvals traceable to model revisions

Link external documents (RFIs, variation orders, approval emails) to specific model versions/elements:

Hyperlinks in objects: Attach PDFs, emails, meeting minutes to relevant BIM elements
Revision logs: Track which design changes resulted from which decisions/approvals
Audit trail: Enable forensic analysis if disputes arise “Why was this duct route changed?”

DX Living adds: VR session recordings with timestamped decisions. Client approves Kitchen Scheme B at minute 12:34 recorded, archived, traceable. Eliminates “I don’t remember approving that” disputes.

Measuring ROI of BIM 3D

KPIs: RFI rate, Variation value, coordination cycle time, install defects, tender accuracy

Track metrics pre/post BIM 3D adoption:

Metric	Pre-BIM 3D	Post-BIM 3D	Improvement
RFI rate	120 per project	35 per project	-71%
Variation value	£180K	£45K	-75%
Coordination cycle time	4 weeks per iteration	1.5 weeks	-62%
Install defects	18 snags per £1M	5 snags per £1M	-72%
Tender accuracy	±12% quantity variance	±4% variance	+67%

New KPI with DX Living:

Tender win rate: Projects using immersive VR presentations win 40% more tenders vs traditional technical submissions alone.

Case-Style examples: Before traditional BIM vs. after DX Living

Scenario: Kitchen/Bathroom coordination

Before BIM 3D: Kitchen joinery clash with structural beam discovered on site, £8K rework, 2-week delay.
With traditional BIM 3D: Clash detected at LOD 300, beam depth reduced 50mm, joinery proceeds uninterrupted.
With DX Living (Beyond BIM 3D): Clash resolved in BIM. Client then explores the kitchen in VR and realizes the preferred appliance (different supplier) doesn’t fit the revised beam zone. Swap to alternative supplier products in VR session, verify fit, approve all before tender submission. Zero site surprises, competitive tender pricing locked.

Scenario: Tender presentation

Traditional approach: Submit 200-page technical document, static renders, 2D drawings. The evaluation panel struggles to visualize the outcome. The decision was delayed 6 weeks.

With DX Living: Submit interactive VR walkthrough + photorealistic video. Evaluation panel experiences project in 30-minute session, sees verified supplier products, understands spatial quality immediately. Approval in 3 weeks your tender stands out as decision-ready.

>>> Learn more about BIM 3D: From design intent to site certainty in 2026

Leveling up with BIM 3D

Scope focus: Decision-critical zones

Pilot BIM 3D on high-risk, high-value zones:

Kitchens: Joinery, appliances, services coordination
Bathrooms: Waterproofing, drainage, fixture placement
Stairs: Geometry compliance, balustrade coordination
Facades: Cladding support, thermal bridging, weatherproofing junctions

DX Living pilot: Take clash-resolved BIM model of kitchen/bathroom, apply real supplier products, create VR walkthrough for client sign-off. Prove value: faster approvals, fewer variations, competitive tender differentiation.

Minimum viable standards: Container naming, LOD Targets, clash rules, issue etiquette

Establish baseline protocols:

Naming: Consistent file/object naming conventions (per ISO 19650)
LOD: Stage-appropriate targets (LOD 200 @ Concept, LOD 300 @ DD, LOD 350 @ CD)
Clash rules: Documented tolerance strategy, prioritised clash types (hard → soft → workflow)
Issue etiquette: BCF workflow, 48-hour response SLA, closeout verification process

Team roles: Information manager, model coordinators, package owners

Define responsibilities:

Information Manager: Oversees CDE, naming conventions, approval workflows, ISO 19650 compliance
Model Coordinators: Run clash detection, manage federated model, track issue resolution
Package Owners (ARC/STR/MEP leads): Maintain discipline models, respond to clashes, update to LOD targets

Clear roles prevent accountability gaps, streamline coordination.

Conclusion

BIM 3D transforms project delivery from design intent to site certainty, reducing RFIs, preventing clashes, accelerating approvals, and enabling data-driven decisions. By adopting object-based modelling, federated coordination, LOD discipline, and ISO 19650 workflows, developers, architects, and engineers achieve faster, more predictable, higher-quality outcomes.

But traditional BIM 3D solves only half the challenge of technical coordination. DX Living completes the picture by turning coordinated models into immersive, decision-ready experiences that:

Win tenders through compelling visual storytelling
Accelerate approvals via interactive stakeholder sign-offs
Lock selections with real supplier products before tender submission
Reduce variations by validating spatial quality pre-construction
Differentiate your bid with experiences evaluation panels remember

DX Living doesn’t replace BIM 3D it evolves it. From clash-free technical models to immersive visual certainty, we bridge the gap between coordination and confident delivery.

Contact us to audit your BIM 3D workflow, integrate DX Living’s immersive platform, and deploy tender-winning visual experiences that turn technical compliance into competitive advantage. Get in touch today to go beyond BIM 3D and transform how you win, approve, and deliver projects.

FAQs

What’s the difference between BIM 3D and 3D modelling?
BIM 3D uses intelligent parametric objects with embedded data (materials, costs, performance); 3D modelling (SketchUp, Rhino, Blender) produces visual geometry without information intelligence or automated schedules.

Do we need IFC if we already share RVT/DWG?
Yes, IFC ensures interoperability when collaborators use different authoring platforms (Revit, ArchiCAD, Vectorworks). Native formats (RVT, DWG) risk data loss, proprietary lock-in, and incompatibility.

How do we choose LOD per element?
Align LOD with project phase and decision requirements: LOD 200 for concept (indicative sizing), LOD 300 for design development (coordinated systems), LOD 350 for construction documentation (clash-free), LOD 400 for procurement (manufacturer-specific).

Can BIM 3D reduce programme time?
Yes, earlier clash detection prevents site rework; automated schedules accelerate quantity take-offs; coordinated documentation reduces RFI resolution time. Case studies show 10–20% programme reduction via BIM 3D.

How does BIM 3D connect to VR/AR?
BIM 3D models export to VR platforms (Unity, Enscape, DX Living) for immersive walkthroughs; AR apps (Trimble SiteVision, HoloLens) overlay BIM geometry onto physical site for installation QA and progress tracking.

BIM & digital construction
